8-215083-0-PLUG, IDC, WIRE TO BOARD, 1.27

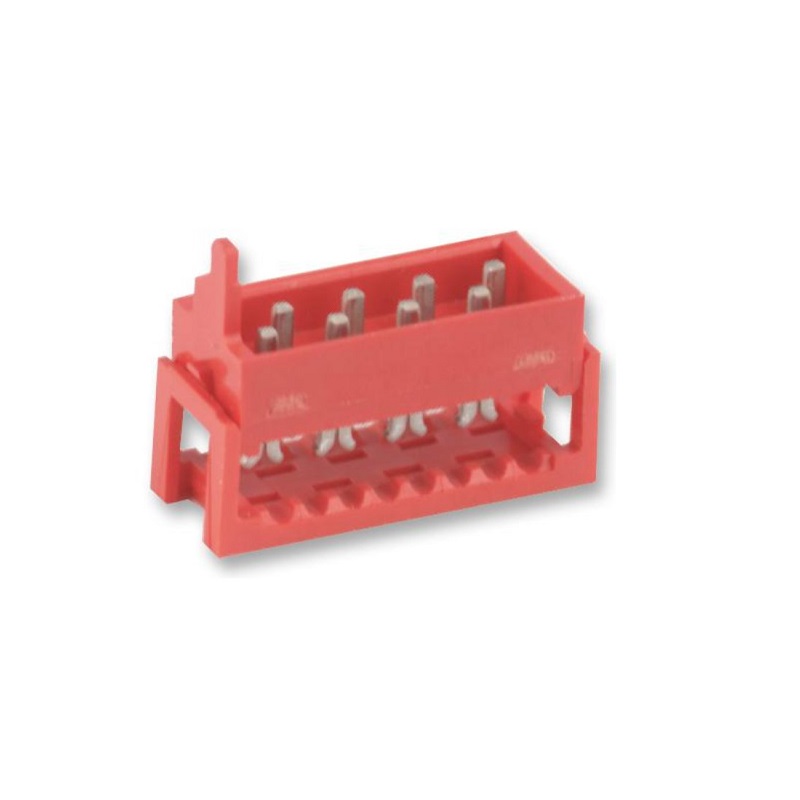

The 8-215083-0 from TE Connectivity is a Micro-MaTch male on-wire connector with IDC termination. It is a 1.27mm pitch, 10 positions polarized, and a vertical connector assembly.

Features:

1. Red colour polyester GF housing
2. Current rating is 1.5A
3. Operating voltage is 100VDC
4. Phosphor bronze with tin-plated contacts
5. Operating temperature range from -40°C to 105°C

Specifications:

1. IDC Connector Type: IDC Plug
2. Contact Gender: Male
3. Pitch Spacing: 1.27mm
4. No. of Rows: 2 Row
5. No. of Contacts: 10Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Phosphor Bronze
8. Contact Plating: Tin Plated Contacts
9. Product Range: Micro-MaTch

Package Includes:

1 x 8-215083-0-PLUG, IDC, WIRE TO BOARD, 1.27
