B82442T1105K000 Wirewound Inductor

B82442T1105K000

Wirewound Inductor, AEC-Q200, 1 mH, 9.5 ohm, 1.8 MHz, 150 mA, 2220 [5650 Metric], B82442T

Specifications:

1. Inductance: 1mH
2. DC Resistance Max: 9.5ohm
3. Self Resonant Frequency: 1.8MHz
4. DC Current Rating: 150mA
5. Inductor Case / Package: 2220 [5650 Metric]
6. Inductor Case Style: 2220 [5650 Metric]
7. Product Range: B82442T
8. Inductance Tolerance: ± 10%
9. Inductor Construction: Unshielded
10. Core Material: Ferrite

Note:

1. For more technical details, go through the datasheet in the attachments

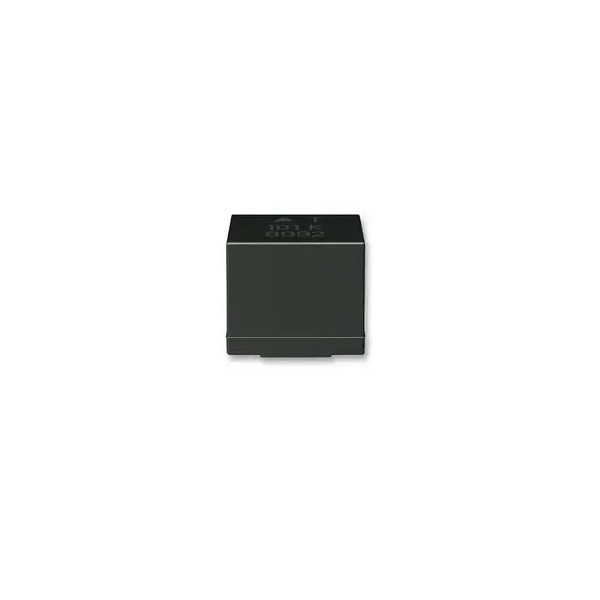

2. Image may vary from actual product in terms of brand and value printed

Package Includes:

1 x B82442T1105K000 Wirewound Inductor
