Product details

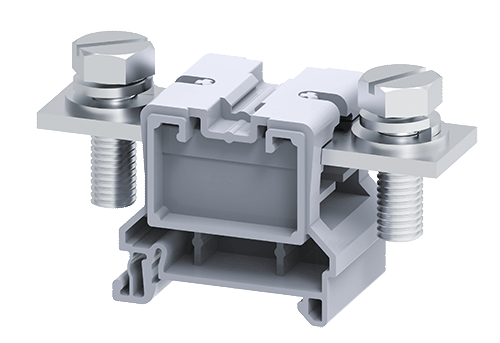

The Connectwell CBB95LS is a 95 mm² Feed through Slotted Bolt Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block’s flat current bar.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 232A |
Tightening Torque | 10 Nm |
| Product Function | Feed Through |
Wire Entry Orientation | Side |
Mounting Possibilities | DIN 35/DIN 35-15 Rail |
Screw Size | M10 |
Operated by | Screw Driver |
Rated Surge Voltage | 8 kV |
Pollution Degree | 3 |
Dimensions
| Height with DIN 35 * 15mm rail | 54.5mm |
Height with DIN 35 * 7.5mm rail | 47.5mm |
Length | 92mm |
Width(Thickness) | 38mm |
| Country of Origin | China |
