Product details

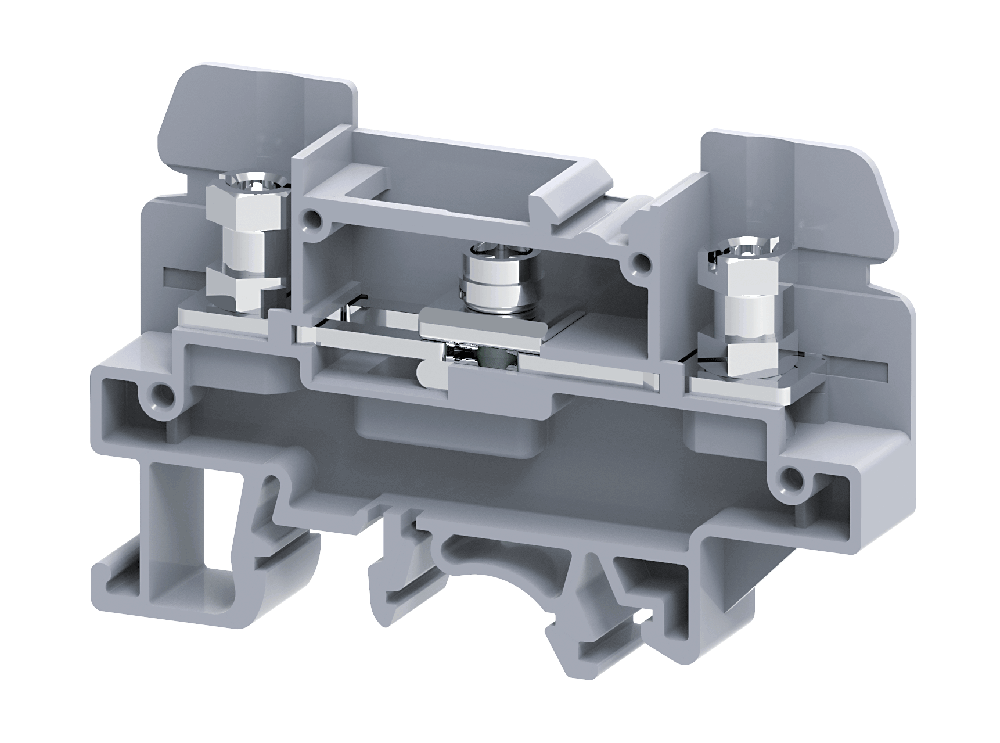

The Connectwell CBDT4UN is a 6 mm² Slide Link Disconnect Terminal Block in Grey colour. These blocks are used for measuring, controlling, regulating, and connecting current transformers. They offer a clear functional advantage for devices that include utility instruments and transformers. The central slide link is opened to disconnect the circuit. Cross-connection is possible using external shorting links.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 41A |
Tightening Torque | 1.2 Nm |
| Product Function | Sliding Type Disconnect and Test |
Wire Entry Orientation | Side Entry |
Mounting Possibilities | DIN 32/DIN 35/DIN 35-15 Rail |
Screw Size | M4 |
Operated by | Nut Driver/Screwdriver |
Rated Surge Voltage | 8 kV |
Pollution Degree | 3 |
Dimensions
| Height | 43.5mm |
| Height with DIN 32 rail | 49.3mm |
| Height with DIN 35 * 15mm rail | 52.2mm |
Height with DIN 35 * 7.5mm rail | 44.7mm |
Length | 67.2mm |
Width(Thickness) | 10.95mm |
| Country of Origin | China |
