Product details

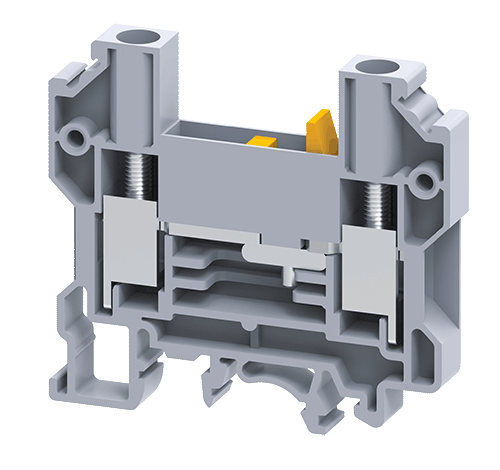

The Connectwell CDTTU is a 10mm² Disconnect & Test Terminal Block with Universal Mounting Possibility in Grey colour. These Terminal Blocks are used in circuits for measuring, controlling, and regulating. They offer a clear functional advantage for devices that include utility instruments and transformers. Disconnection in this Terminal Block is accomplished via a screwdriver-operated slide link. In disconnecting and testing terminal blocks, specially designed socket-headed screws serve as test monitoring points.
Specifications
| Rated Voltage | 800V |
| Rated Current | 57A |
Tightening Torque | 1.2 Nm |
Housing Material | Polyamide |
| Product Function | Sliding Type Disconnect and Test |
Wire Entry Orientation | Side Entry |
Mounting Possibilities | DIN 32/DIN 35/DIN 35-15 Rail |
Screw Size | M4 |
Operated by | Screwdriver |
Rated Surge Voltage | 8 kV |
Pollution Degree | 3 |
Dimensions
| Height with DIN 32 rail | 63.7 mm |
| Height with DIN 35 * 15mm rail | 65.7 mm |
Height with DIN 35 * 7.5mm rail | 58.7 mm |
Length | 63 mm |
Width(Thickness) | 8mm |
| Country of Origin | China |
