Product details

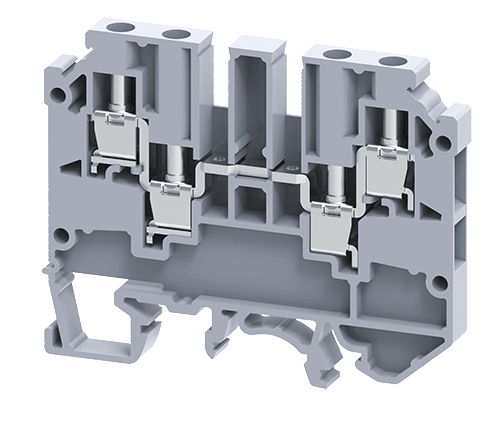

The Connectwell CMC2-2 is a 4 sq. mm Multiple Connection Terminal Block with 4 connection points. These blocks are used to connect multiple wires in a single Terminal Block, eliminating the reliability issues that can occur when connecting multiple wires in
a single Terminal Block.
Specifications
Rated Voltage | 630 V |
Rated Current | 32 A |
Tightening Torque | 0.5 Nm |
Housing Material | Polyamide |
Product Function | Multiple Connection |
Wire Entry Orientation | Side Entry |
Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
Screw Size | M3 |
Operated by | Screwdriver |
Rated Surge Voltage | 8 KV |
Pollution Degree | 3 |
Dimensions
Height with DIN 32 rail | 58.7 mm |
Height with DIN 35 x 15 mm rail | 60.5 mm |
Height with DIN 35 x 7.5 mm rail | 53.4 mm |
Length | 65 mm |
Width (Thickness) | 6 mm |
| Country of Origin | China |
