Product details

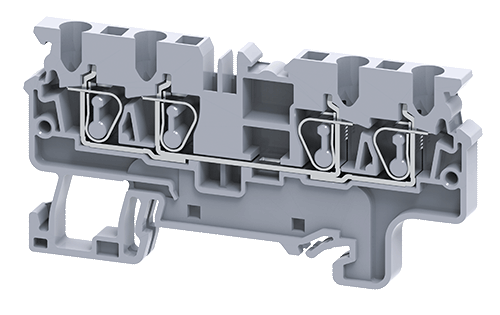

The Connectwell CX2.5/4 is a 2.5 mm² Feed Thru Spring Clamp 4 Wire Terminal Block in Grey color. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to gain access to the wire. When the screwdriver is removed, the inserted wire is clamped to the current bar.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 24A |
| Product Function | Feed Through |
Wire Entry Orientation | Top |
Mounting Possibilities | DIN 35/DIN 35-15 Rail |
Operated by | Screw Driver |
Rated Surge Voltage | 8 kV |
Pollution Degree | 3 |
Dimensions
| Height with DIN 35 * 15mm rail | 45.2mm |
Height with DIN 35 * 7.5mm rail | 37.6mm |
Length | 74.7mm |
Width(Thickness) | 5mm |
| Country of Origin | China |
