Product details

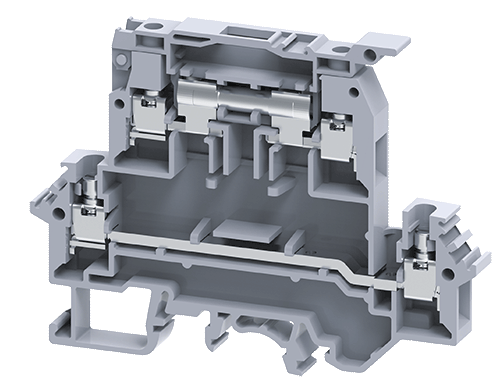

The Connectwell DDFL4UE110-240V is a 4mm² 2 Level Ø5X20mm 6.3A Fuse Terminal Blocks with offline LED indication. These Terminal Blocks have a specially designed circuit that illuminates in the event of a top-level fuse blowout.
Specifications
| Housing Material | Polyamide |
| Rated Current | 6.3A |
Tightening Torque | 0.5 Nm |
| Product Function | Double Level |
Wire Entry Orientation | Side Entry |
Mounting Possibilities | DIN 32/DIN 35/DIN 35-15 Rail |
Screw Size | M3 |
Operated by | Screwdriver |
Rated Surge Voltage | 5 KV |
Pollution Degree | 3 |
Dimensions
| Height with DIN 32 rail | 71.4mm |
| Height with DIN 35 * 15mm rail | 74.3mm |
Height with DIN 35 * 7.5mm rail | 67.4mm |
Length | 88mm |
Width(Thickness) | 8mm |
| Country of Origin | China |
