DYS D3536-5 1450KV BLDC Motor
₹1,615.75
- Battery: 2~4 Cell /7.4~14.8V
- RPM: 1450kv
- Max current: 45A
- No-load current: 3.5A
- Max power: 655W
- Internal resistance: 0.023 ohm
- Weight: 102g (including connectors)
- Diameter of shaft: 5mm
- Dimensions: 35x36m
- Prop size: 7.4V/9×6 14.8V/8×4
- Max thrust: 1380g
- Pole Count: 12
Discount per Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹1,534.96 |
11 - 20 | 8% | ₹1,486.49 |
20 - 50 | 10% | ₹1,454.18 |
51 - 100 | 12% | ₹1,421.86 |
- Estimated delivery time 2-4 days
- (Subject to stock Availability)
Product details
This DYS High-Quality D3536-5 1450KV brushless outrunner motor specifically made to power Quadcopters and Multirotors. It is a 1450kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inches to 10-inch propellers.
The motor comes with 3mm banana male connector attached which can be directly connected with 30A ESC without any soldering requirement
With a 3S LiPo battery, 30A ESC, and high efficiency 10″ propellers, these motors provide up to 1380gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.9 kg thrust! Use this to build powerful and efficient quadcopters.
This is a low price and excellent quality Brushless Motor. It comes with Bullet Connectors already soldered.
APPLICATION :
- FPV Racing Drones
- Quadcopters
- Multirotors
- RC Airplanes
- UAV
Features:
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.

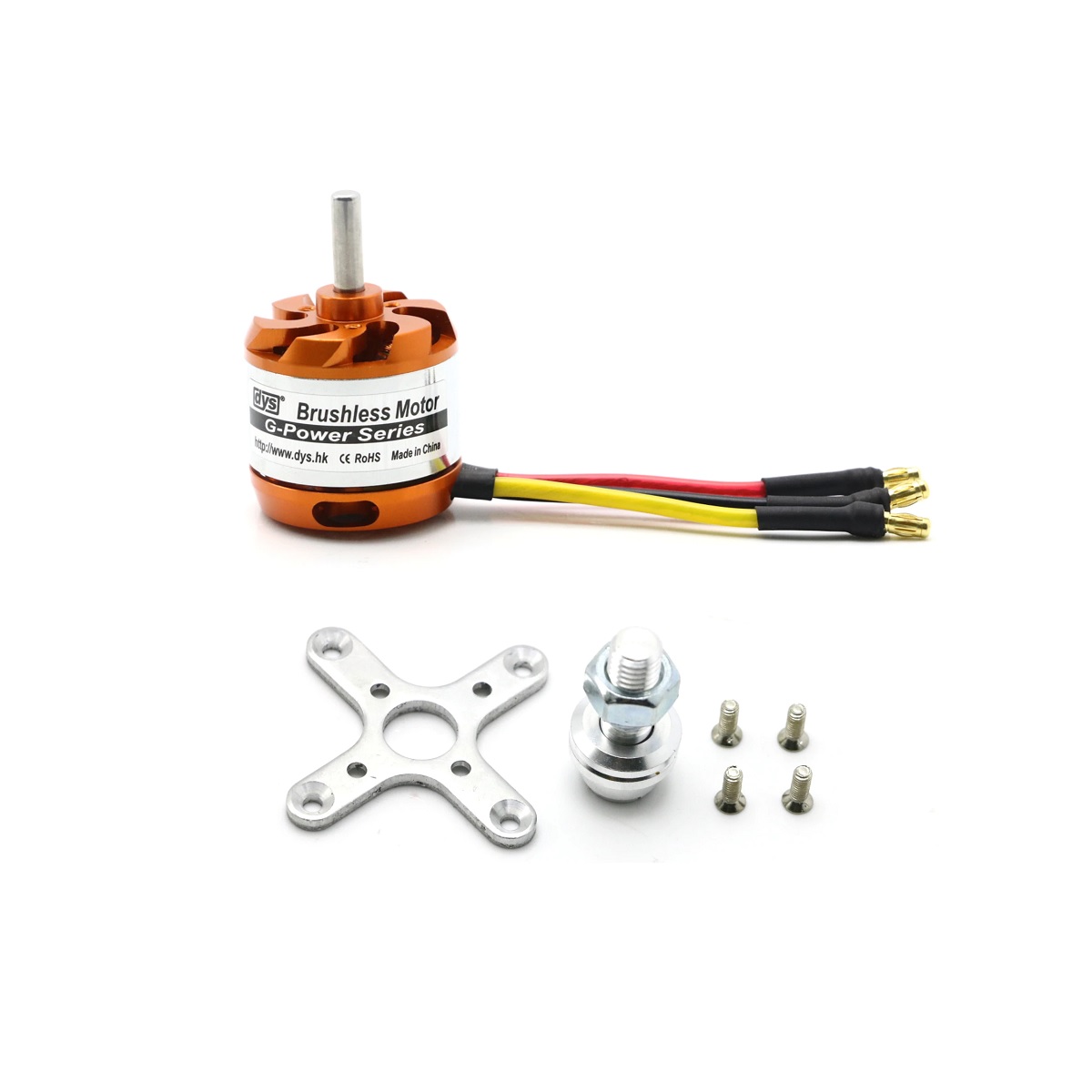

Package Included:
1 x DYS D3536-5 1450KV Outrunner Brushless Drone Motor
1 x Prop Adapter
1 x A Motor Holder (X-type) and set of screws
1 x User Manual
Additional information
Compatible LiPO Batteries | 2S ~ 4S |
---|---|
Model | D3536-5 |
Motor KV (RPM/V) | 1450 |
Shaft Diameter (mm) | 5 |
Maximum Power (W) | 655 |
Poles | 12 |
Maximum Thrust (gm) | 1380 |
Compatible Propellers Size (inch) | 9×6/8×4 |
Required ESC (A) | 30-40 |
Volts | 7.4 ~ 15v |
