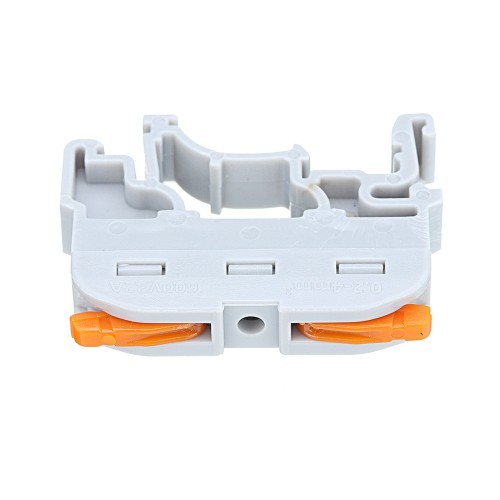

PCT-211 Guide Rail Type, Quick Connection Terminal

0 Reviews
Available on backorder

26.45

  1. Model: PCT-211
  2. Rated Voltage:400 V
  3. Rated Current:32 A
  4. Color:Gray+orange

Discount per Quantity

QuantityDiscountPrice
5 - 105%25.13
11 - 208%24.33
20 - 5010%23.81
51 - 10012%23.28
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: ws24321944

Product details

The PCT series compact splicing connectors make the connecting easily save time and money in distribution boxes or junction boxes. With the compact body, we can make connecting possible to be done in the narrow space and enable the high wiring density.

This is a PCT-211 0.08-4mm2 Single Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.


Features:

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 4-Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x PCT-211 Guide Rail Type Quick Connection Terminal

Additional information

Model

PCT-211

Rated Voltage (V)

400

Rated Current(A)

32

Color

Grey+Orange

Operating Temperature Range (°C)

-20 to 85
